Description

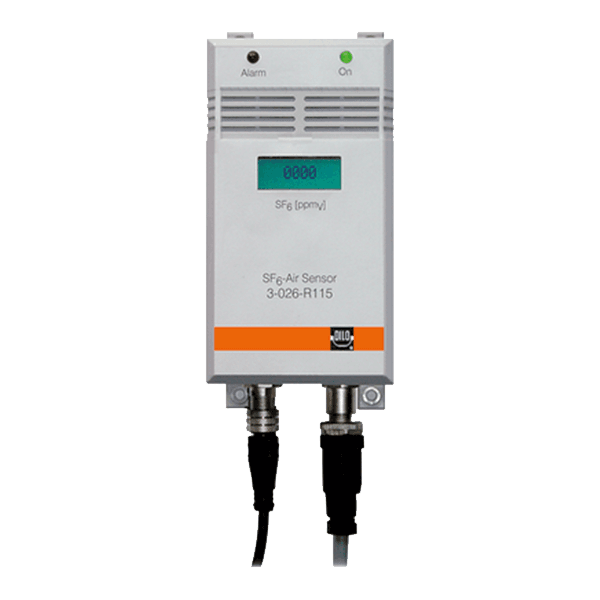

SF6-Air Sensor
For monitoring the air of SF6 indoor plant in permanent operation
3-026-R115
The device even detects smallest SF6 concentrations and displays the current measuring values permanently. For the operating personnel it is absolutely necessary to know that no radioactive source is used. Therefore no special measures must be taken during operation.
The SF6 Air Sensor guarantees a quick reaction time. Furthermore, there is no cross sensitivity to moisture and unaffected by background contamination and the measuring result remains constant. Parameters for warning messages and alarm tripping are freely configurable.
Other features:
- Measuring range: 0 to 1,500 ppmv SF6
- High longtime stability
- No maintenance and consumables are required
- Indication of the measuring value via LCD on the front of the device
- Air pressure compensated
- Analogous and serial interface
Important note:
The device can only be used together with the SF6 Network Monitor. It cannot be operated autonomously.
