Description
Maintenance devices for large and extra large gas compartments

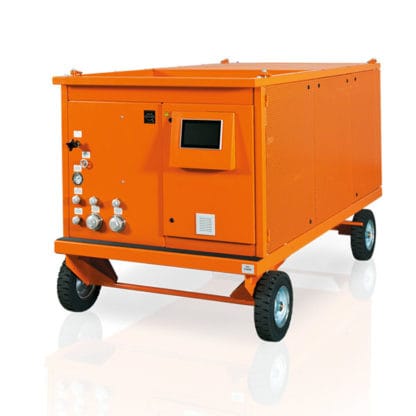

L400R01 / L600R..
These service carts are our most powerful devices and guarantee quick maintenance of gas compartments. Thanks to the state-of-the art control all functions run automatically and are displayed on a 10″ multi-touch screen. A new software with intuitive user navigation makes operation very easy and comfortable. This service cart can optionally be operated via smartphone, tablet or laptop.
Precondition for the construction of this series which allows SF6 gas recovery down to a final vacuum of < 1 mbar was emission-free gas handling. When using the gastight DILO couplings and connecting systems emissions will have no chance! Short gas recovery and evacuating times are obtained by using a coupling DN40.
All types are available with additional connecting couplings DN20 and DN40 (as option) for simultaneous operation. Thus it is possible to evacuate air from a gas compartment while filling SF6 at the same time or recovering gas from another gas compartment. Multitasking in practice.
Other features:
- Devices for liquid storage of SF6 gas
- SF6 gas recovery down to < 1 mbar
- Automatic control and high quality capacitive 10″ multi-touch screen
- Optional remote control via mobile devices
- Reversing switch for direction of rotation
- Digital weighing scales for SF6 cylinders
- Residual gas recovery down to 1 mbar during filter change
- Reduction to transport pressure as integrated special function
- All versions are available with tanks which can be assembled under the device with CE marking also available with SQL and ASME approval
- The service carts can be mounted on a trailer
