Description
- Operates at low voltage
- Battery operated
- Measures voltage up to 30 kV
- Checks phase rotation

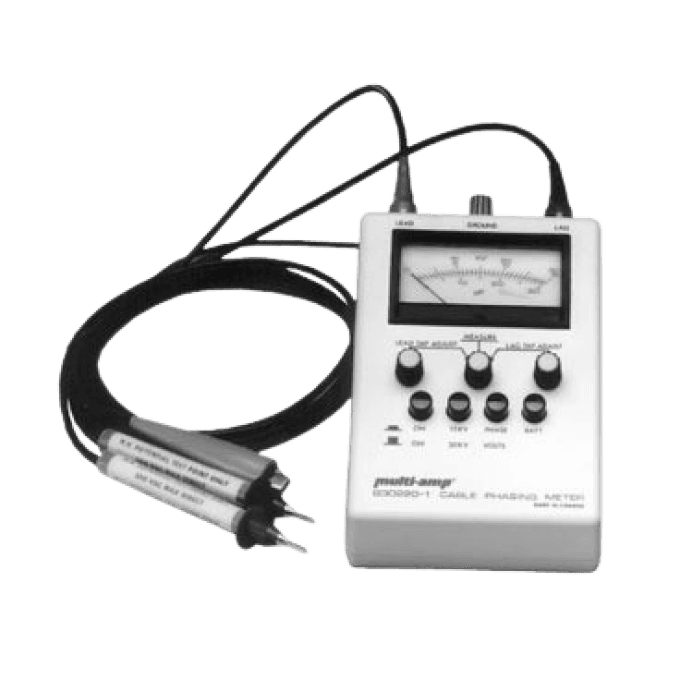

The 830220-1 cable phasing meter has been designed to measure voltage, determine phase potation, and phase out cables when connected to the capacitive test points. It offers a safe and quick method of measuring voltage and determining phase rotation of underground distribution systems using the capacitance test point of elbow connectors. Most manufacturers of high-voltage cable terminators incorporate capacitance test points into their elbow connectors. These test points are designed for measuring purposes.
The 830220-1 is also battery operated and comes supplied in a rugged case, with a ground/earth lead and two measuring leads.
