Description

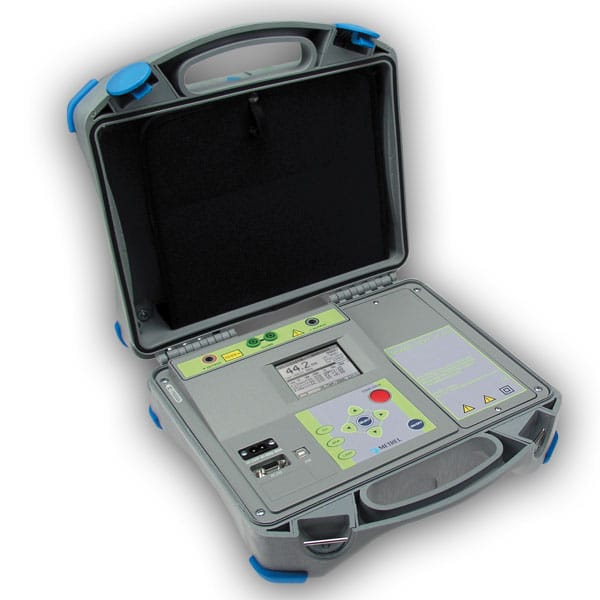

TeraOhm 10 kV is professional insulation tester, which allows measuring and testing high voltage equipment.
MEASURING FUNCTIONS
- Insulation resistance up to 10 TΩ
- DC Test voltage 500 V – 10 kV in step of 25 V
- The short circuit current is 5 mA
- Auto-calibation of measuring system
- Operates from mains or rechargeable supply
- Automatic discharge of capacitive loads
- Digital and bar graph results with date and time
- User friendly PC software with RS232 or USB isolated communication port
- High quality accessories
- High noise immunity
- Highest protection degree CAT IV 600 V
STANDARDS APPLIED
Instruments: EN61557-2, EN61326, EN61010-1, EN61010-31
Applications: EN60345, EN61010, IEEE43:2000
