Description

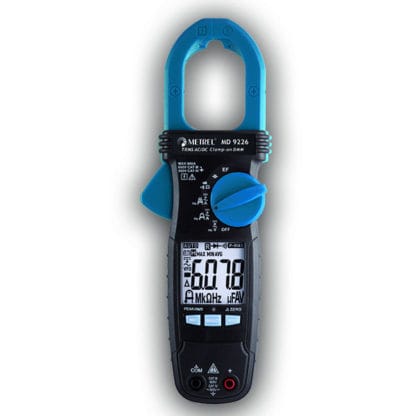

The MD 9226 is a professional DC and TRMS AC current clamp meter capable of measuring capacitance and frequency. It is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency. The MD 9226 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function. It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case.
MEASURING FUNCTIONS
- DC and TRMS AC voltage up to 600 V;
- DC and TRMS AC current measurement up to 600 A;
- Resistance measurement;
- Acoustic continuity test;
- Diode test;
- Frequency measurement;
- Capacitance measurement.
KEY FEATURES
- Auto-ranging.
- LCD display with backlight, 3-5/6 digit, 6000 count.
- Automatic, non-contact detection of electromagnetic fields to locate and trace live conductors.
- Data hold function.
- MIN/MAX/AVG function.
- Peak value.
- Relative zero.
- 35 mm jaw opening.
- CAT IV / 300 V, CAT III / 600 V overvoltage categories.
APPLICATION
- System maintenance;
- Power system checking;
- High level industrial testing;
- High level electrical testing.
