Description

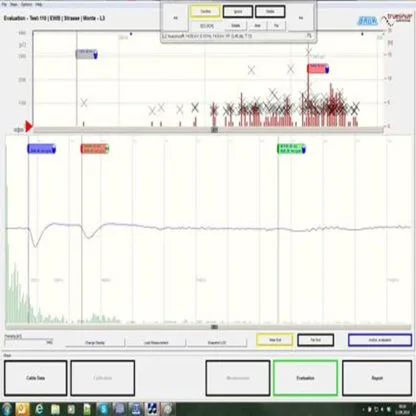

BAUR System Software 3.3.9
The BAUR system software is a cable testing, cable diagnostics and cable fault location package. It enables efficient monitoring of the condition of cable networks in combination with BAUR cable fault location, testing and diagnostics systems.
Reliable cable fault location, cable testing and diagnostics
- Best possible basis for cost-optimised, condition-oriented maintenance
- Common data management through comprehensive cable database supports actual and trend analysis
- Conclusive presentation of measurement results
Highlights
Cable fault location:
- Suitable for single and three-phase cable systems
- Measuring ranges over 200 km
- Fully automatic measurement and display of the fault distance through automatic cursor positioning at the fault location
- “Easy mode” for standardised and quick fault location
Cable testing:
- Three test voltages – true sinus, DC voltage and rectangular wave voltage – from one voltage source
- Automatic test sequences programmable according to standards or user-defined
- Automatic shutdown of the system or burn mode after breakdown (depends on setting)
- More flexibility through “Manual test” mode
Dissipation factor measurement:
- Quick and efficient assessment of cable insulation (in few minutes)
- No limitation due to length of connection cable, hence suitable for problematic connection conditions (e.g. pole stations)
- Professional and systematic evaluation of cable insulation
- Possibility for measurement data exchange between the BAUR software and the frida TD and viola TD VLF generators
Partial discharge diagnostics:
- Exact location of PD activities on cable insulation, joints and terminations
- Safe evaluation of PD intensity
- Automatic partial discharge measurement with automatic detection of inception voltage and location of PD sources
